S-AFC Wiring Instruction for 2000 Celica GT-S

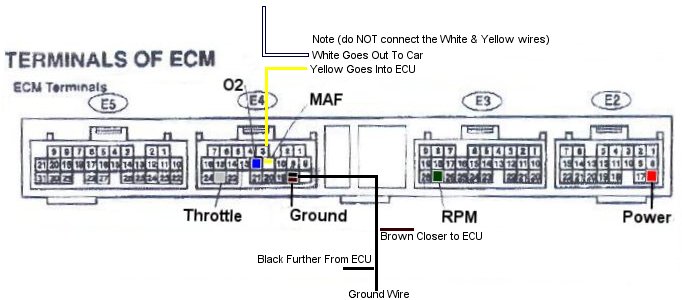

e4-18 - Ground (Brown & Black, Make Sure Brown Is Closer to ECU) e4-12 - O2 (Blue) e4-11 - MAF (Yellow & White, Make Sure Yellow Is Closer to ECU) e4-23 - Throttle (Gray) e3-27 - RPM (Green) e2-16 - Power (Red)
This Information Was Provided By Bottle With Power House Racing/Titan Motorsports and has been edited by Larry D for use on NewCelica.org.
Instructions mirrored here on russ.angrypacket.com
If you are interested in purchasing this unit contact Bottle @ 407-977-9732 |
|
